Bootable USB for Windows Server 2008-2019

How to Create a Bootable USB for Windows Server

How to Create a Bootable USB for Windows Server

Bootable USB is a backup media that allows recovering image-based backups on machines with no operating system. (That technique is called bare-metal recovery.) This article provides instructions on how to create a bootable USB drive with MSP360 Backup (now MSP360 Backup) for Windows Server and applies to Windows Server 2008 / 2008 R2, 2012 / 2012 R2, 2016 and 2019.

Table of Contents

    Introduction

    Bootable USB will contain a cut-down version of Windows with MSP360 Backup and a number of other tools installed that can be used to boot a machine with no (or corrupted) OS.

    Having an image-based backup at hand along with a bootable USB will enable you to quickly restore your Windows Server on any hardware. This prevents you from being caught off guard in an emergency situation.

    The procedure for creating a bootable USB is identical for the following versions of Windows Server:

    • Windows Server 2008 / Windows Server 2008 r2
    • Windows Server 2012 / Windows Server 2012 r2
    • Windows Server 2016
    • Windows Server 2019
    FREE WHITEPAPER
    Full System Backup and Recovery
    Check out our comprehensive guide covering system image, system state, and application-aware backup and recovery:
    New call-to-action
    WP icon

    Before you proceed, ensure that you have an image-based backup in the cloud or local storage. Only use USB drives that have at least 2 GB of storage (8 GB is recommended for Windows Server 2012 and later).

    Creating a Bootable USB for Windows Server

    Plug your USB drive into the computer where you want to create the bootable USB, launch MSP360 Backup and follow the steps below.

    1 In MSP360 Backup, click Make Bootable USB button:
    Make bootable USB buttonThis will launch the Create Recovery Disk dialog window.

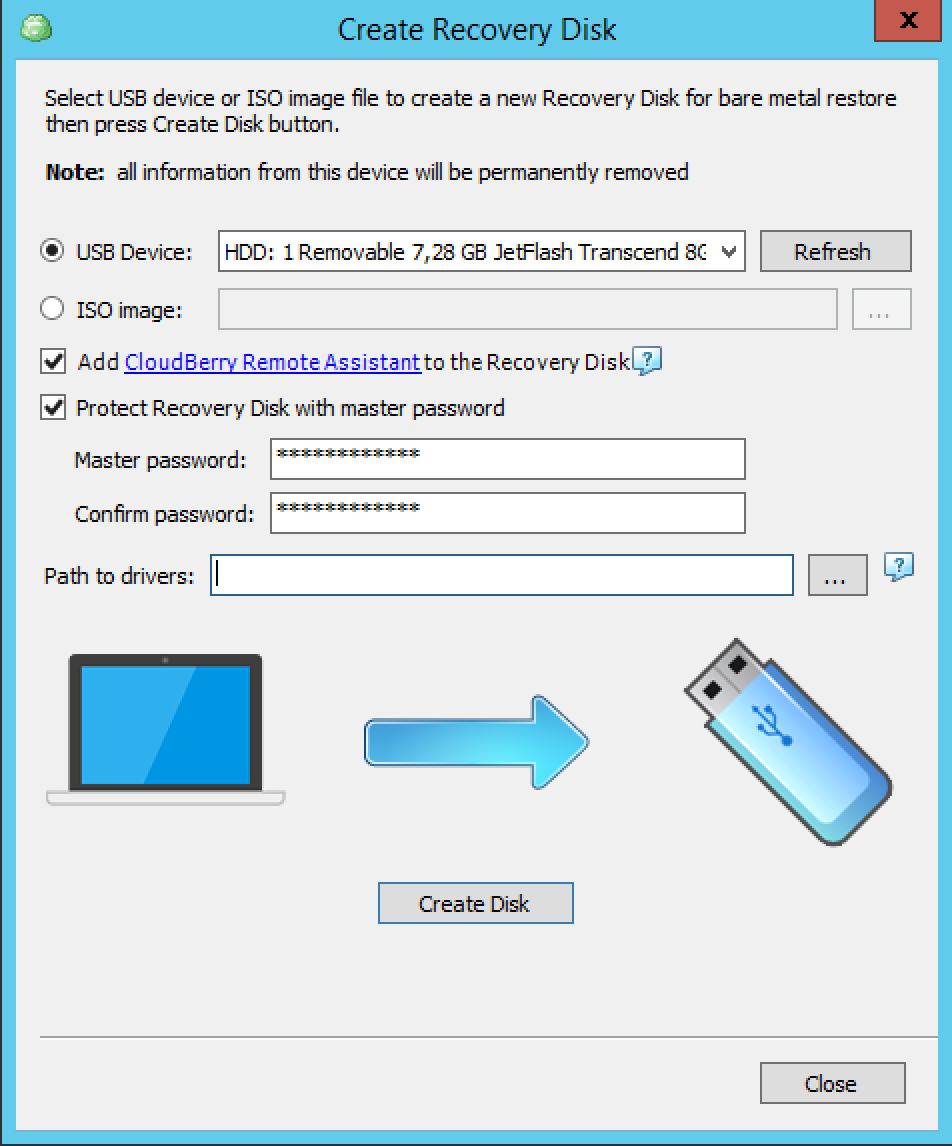

    2 In the Create Recovery Disk dialog window, you can select whether you want to create a bootable USB (that's what we'll do) or whether you want to create a bootable ISO image.
    Creating Windows Server bootable USB

    3 You can also use the following additional options in the Create Recovery Disk dialog window:
    - Add MSP360 Connect (formerly Remote Desktop) to the Recovery Disk
    This enables you or someone else who provides administrative support to connect to the booted Windows Server.
    - Protect Recovery Disk with a master password
    Specify a master password for extra security to prevent anyone from unauthorized from using the USB disk.

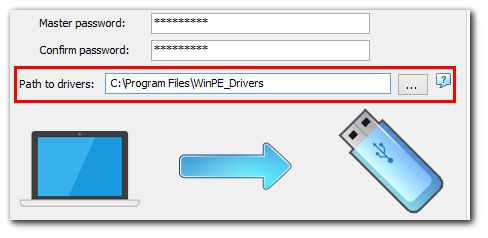

    - Path to drivers
    Specify a folder where additional drivers you’d like to install are located.
    Creating Windows Server bootable USB: specifying path to drivers
    Note:
    Use this option to be able to use this disk for recovery to dissimilar hardware.

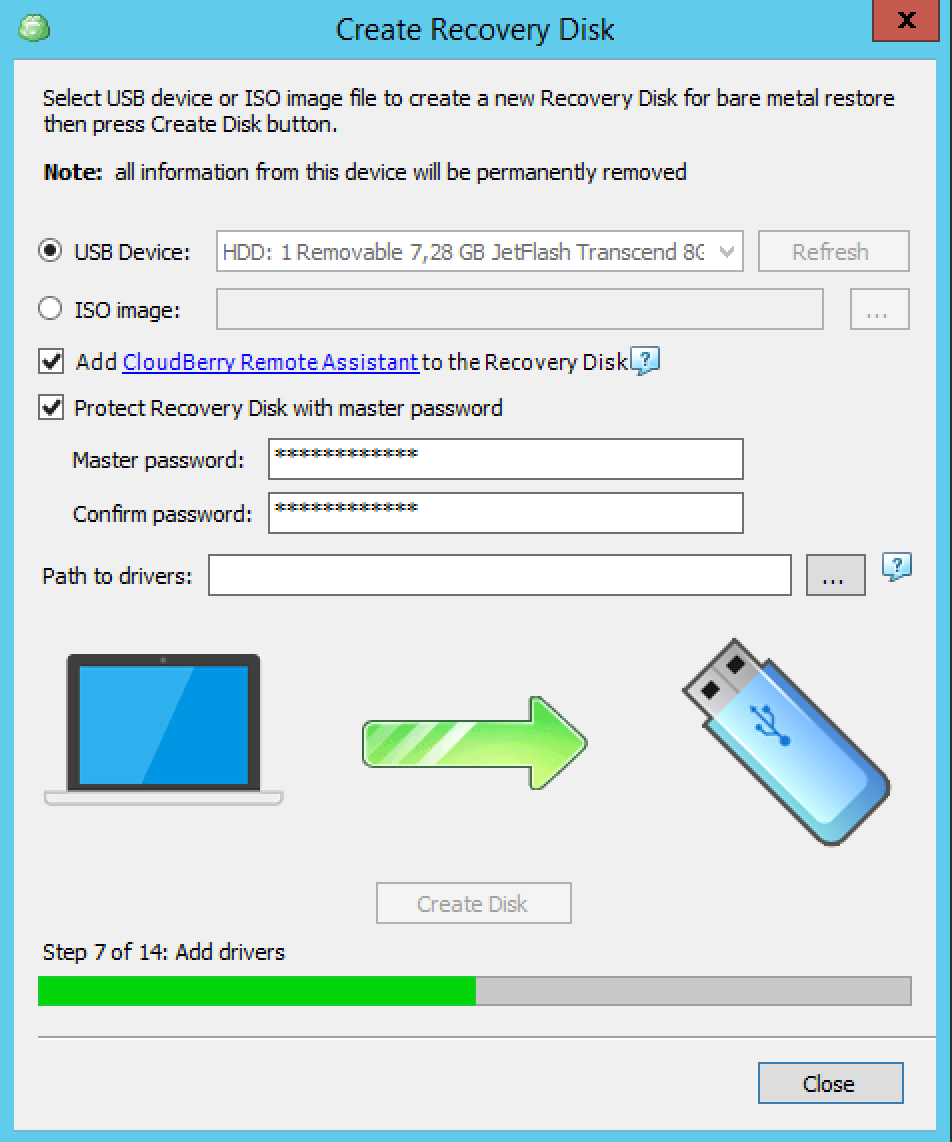

    4 Once you complete setting up all the options, click Create Disk. The creation of bootable USB usually takes no more than a few minutes, depending on the speed of the USB drive.Process of creating of recovery usb for Windows Server

    Once the creation is completed, you have a fully-functional bootable USB with an image-based backup which you can use to restore Windows Server.

      New call-to-action

    Restoring Windows Server from a Bootable USB

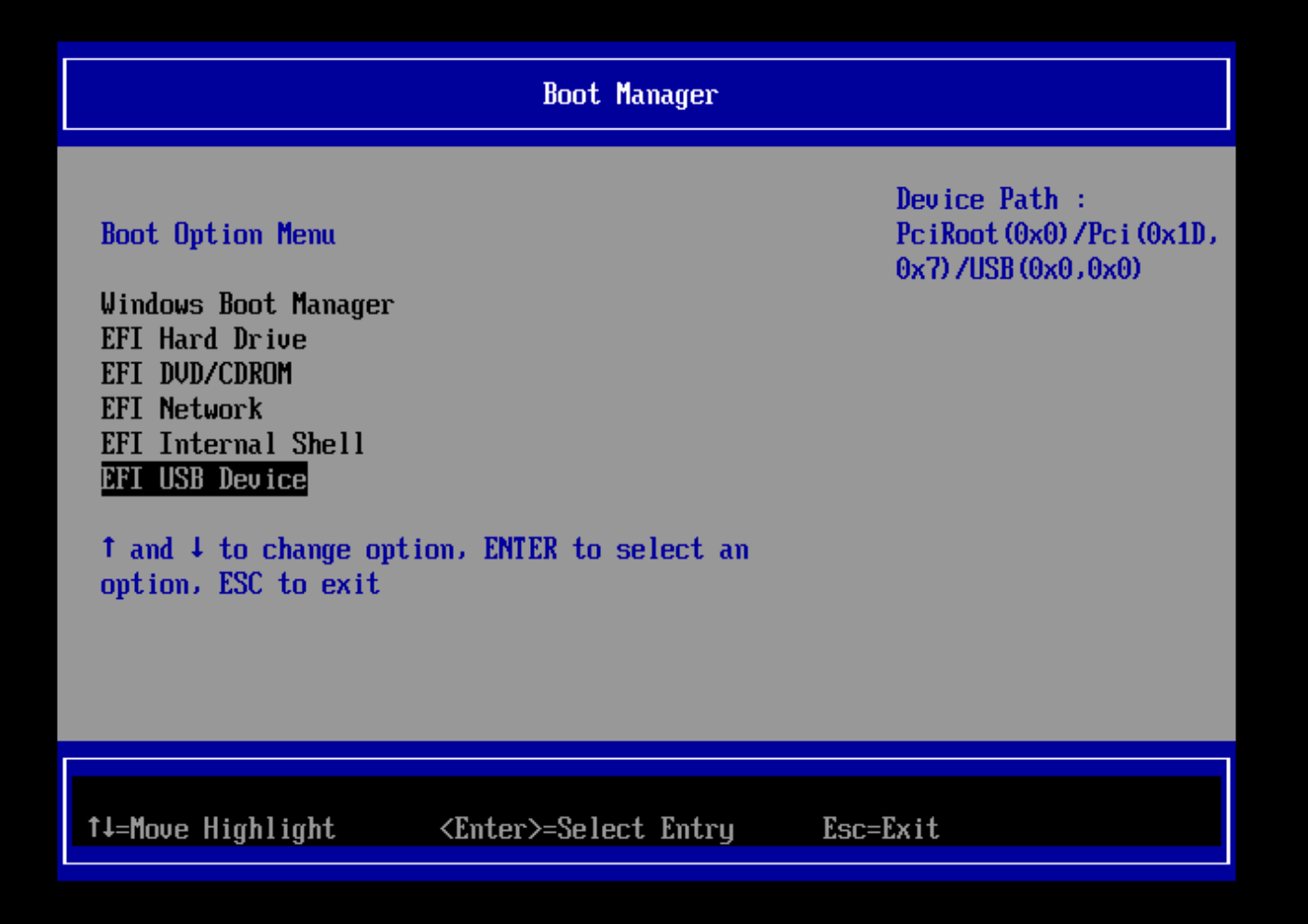

    1Boot up the computer into Boot Manager with the USB stick plugged in. Select the USB Device and press Enter.
    Boot from USB

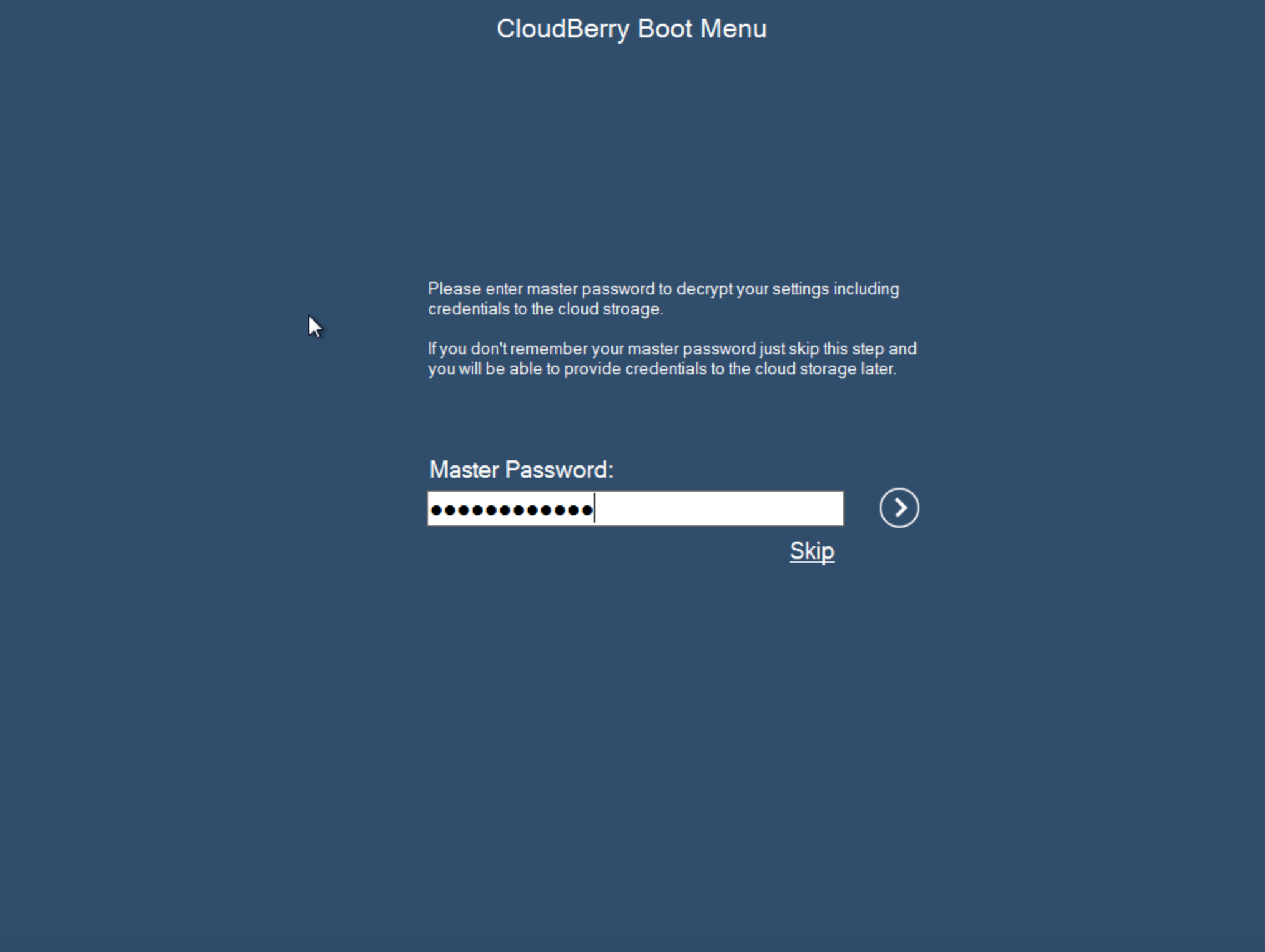

    2Enter the master password you used when creating the bootable USB and press Enter.
    CloudBerry BackUp boot menu

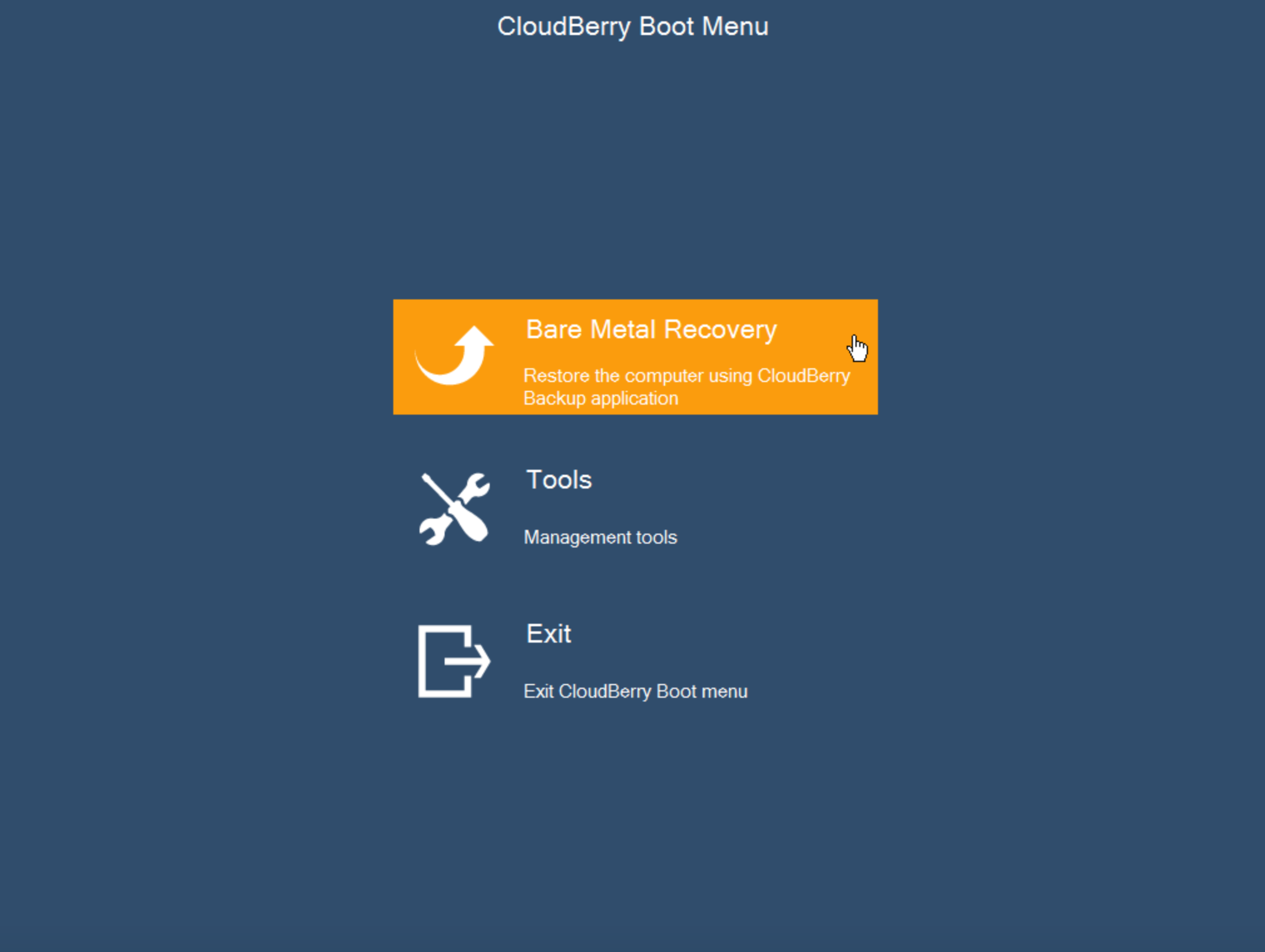

    3Click Bare Metal Recovery to launch MSP360 Backup.
    Bare metal recovery from bootable USB

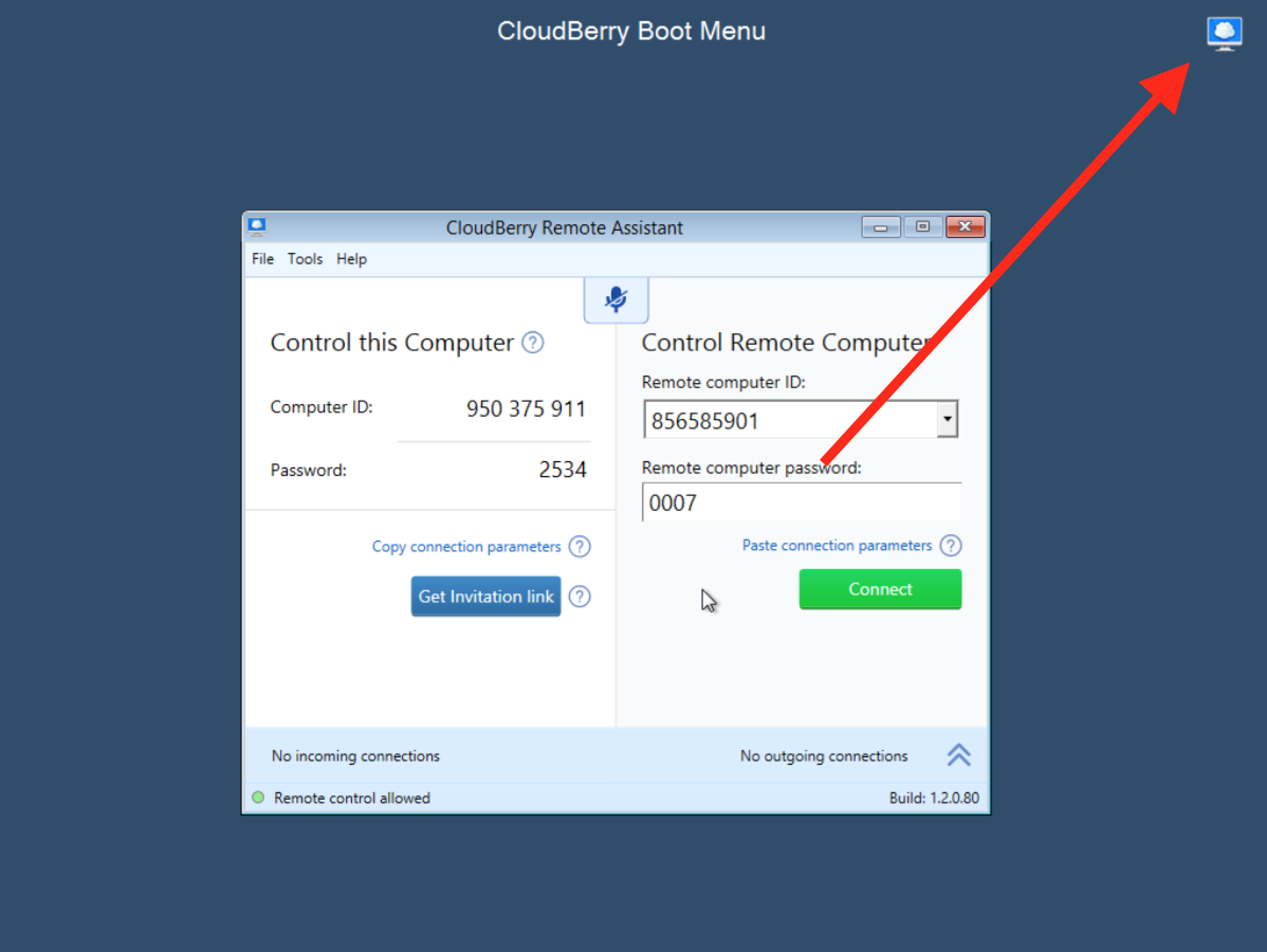

    Alternatively, you can launch MSP360 Connect by clicking on its icon it the upper right-hand corner (provided that you selected this option when creating the bootable USB). You can use MSP360 Connect to give an authorized administrator or support personnel access to your computer.
    Remote assistant for Bare Metal Recovery

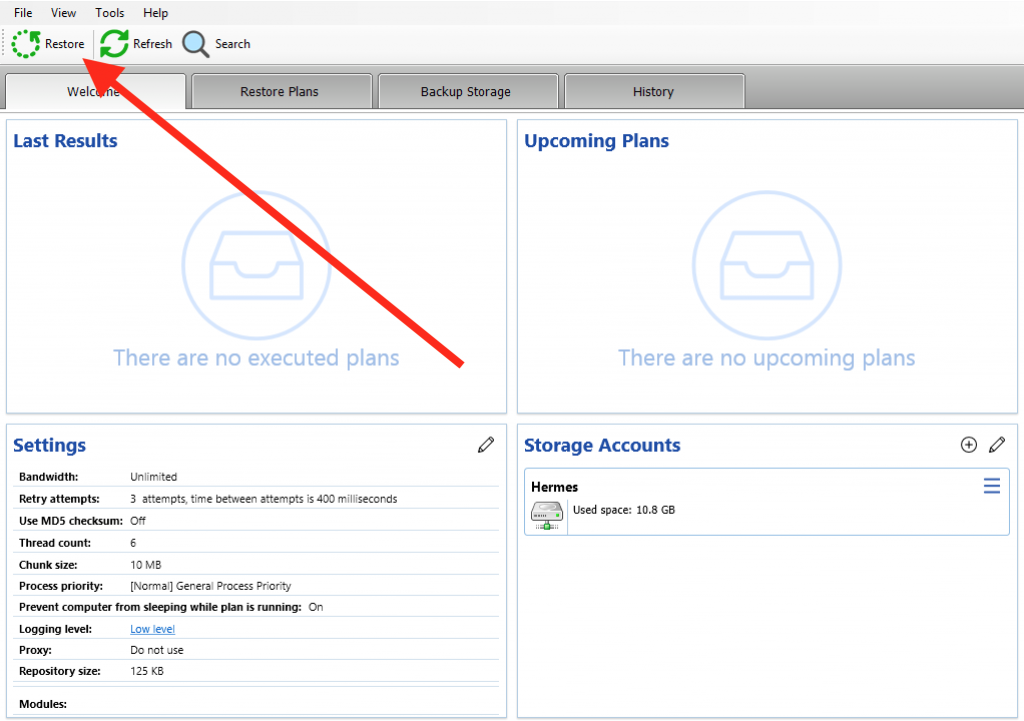

    4 In MSP360 Backup, launch the Restore Wizard by clicking Restore on the main toolbar or using the Ctrl+R shortcut.
    Restoring Windows Server from bootable USB

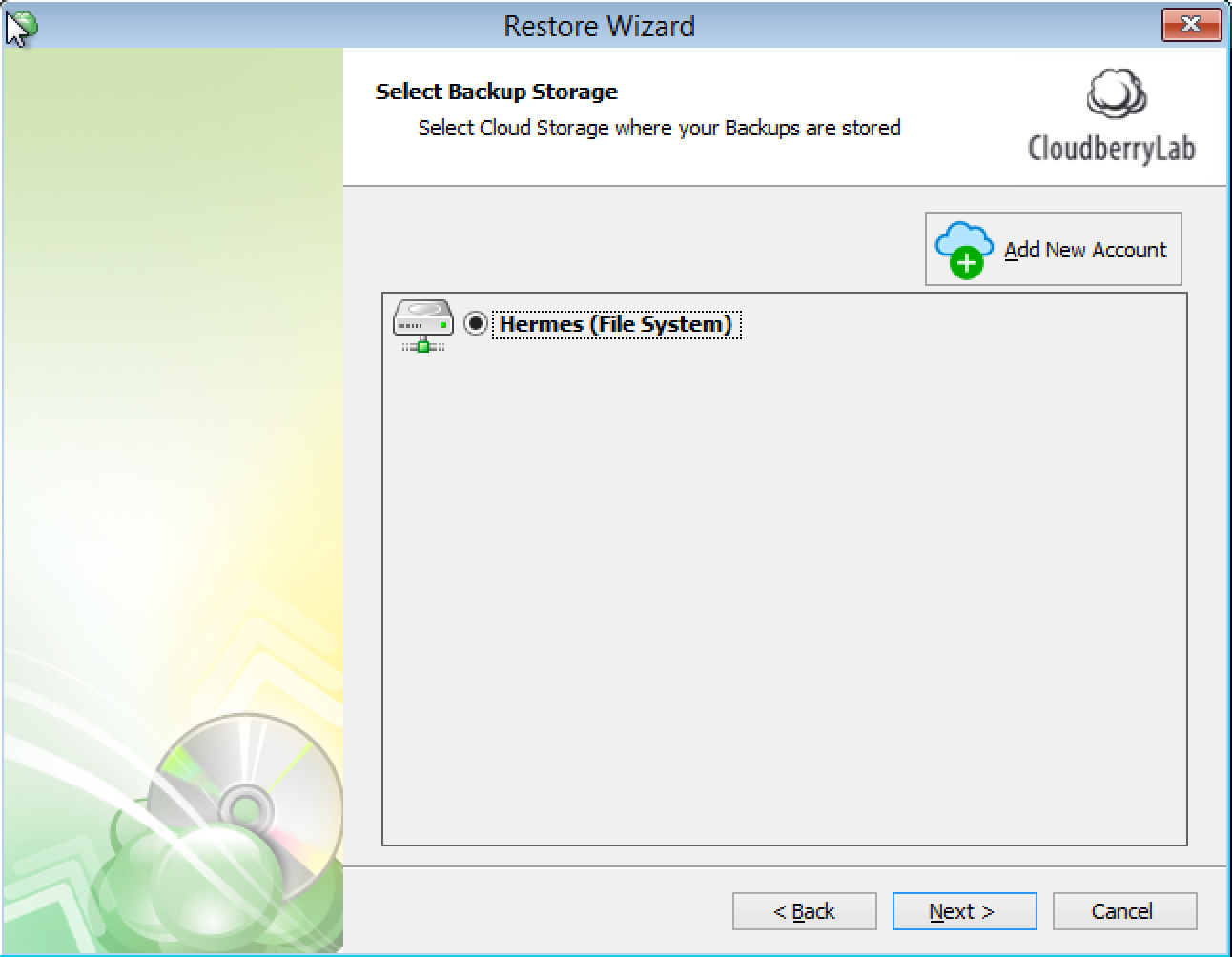

    5 In the Restore Wizard, select or add the backup storage that contains the image-based backup. It's essential that the backup prefix of the backup storage matches that of the backup itself.
    Selecting restore source

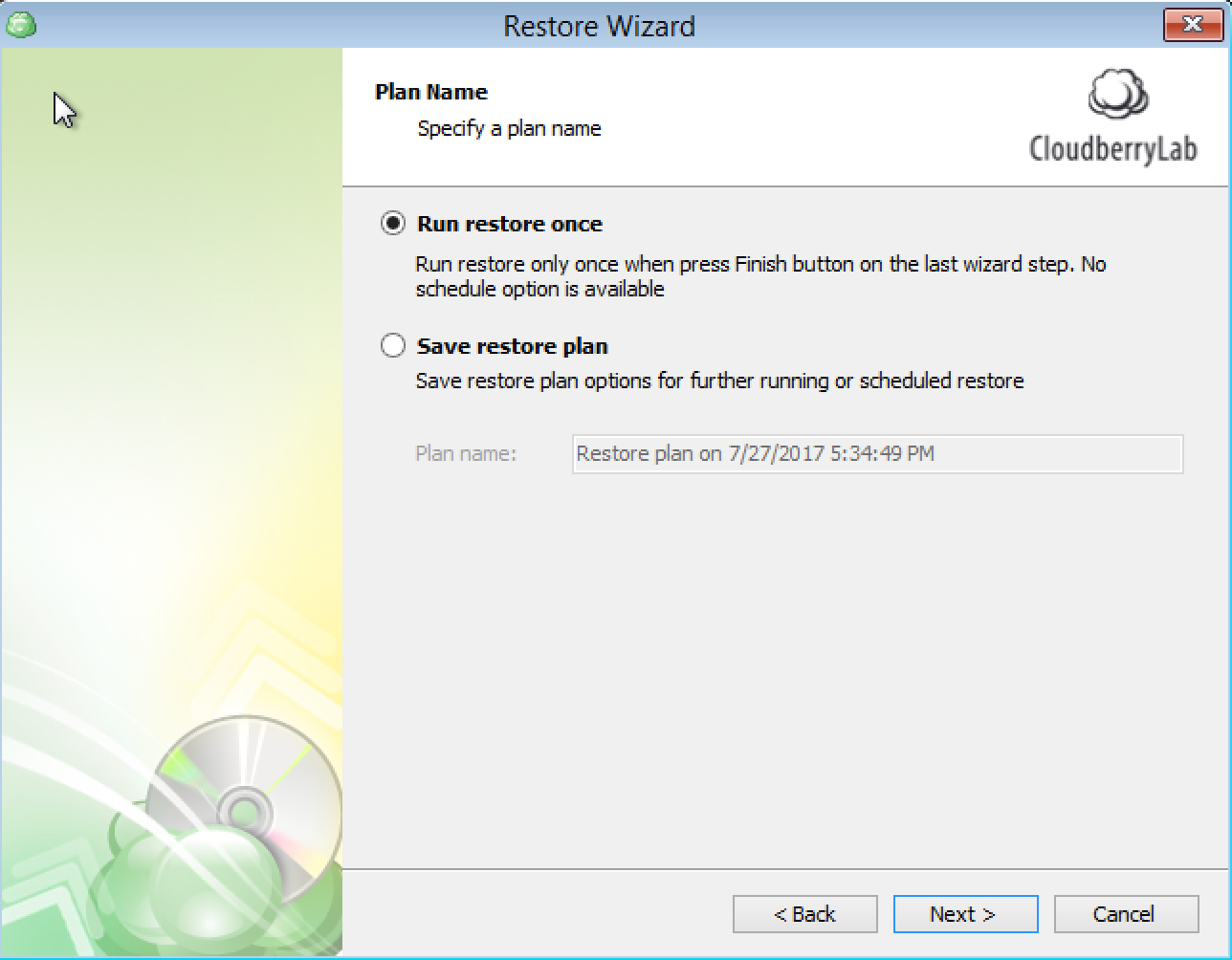

    6 Choose whether you need to run the restore only once (without saving its configuration) or save the restore plan options after completing the wizard.
    Ыave the restore plan options

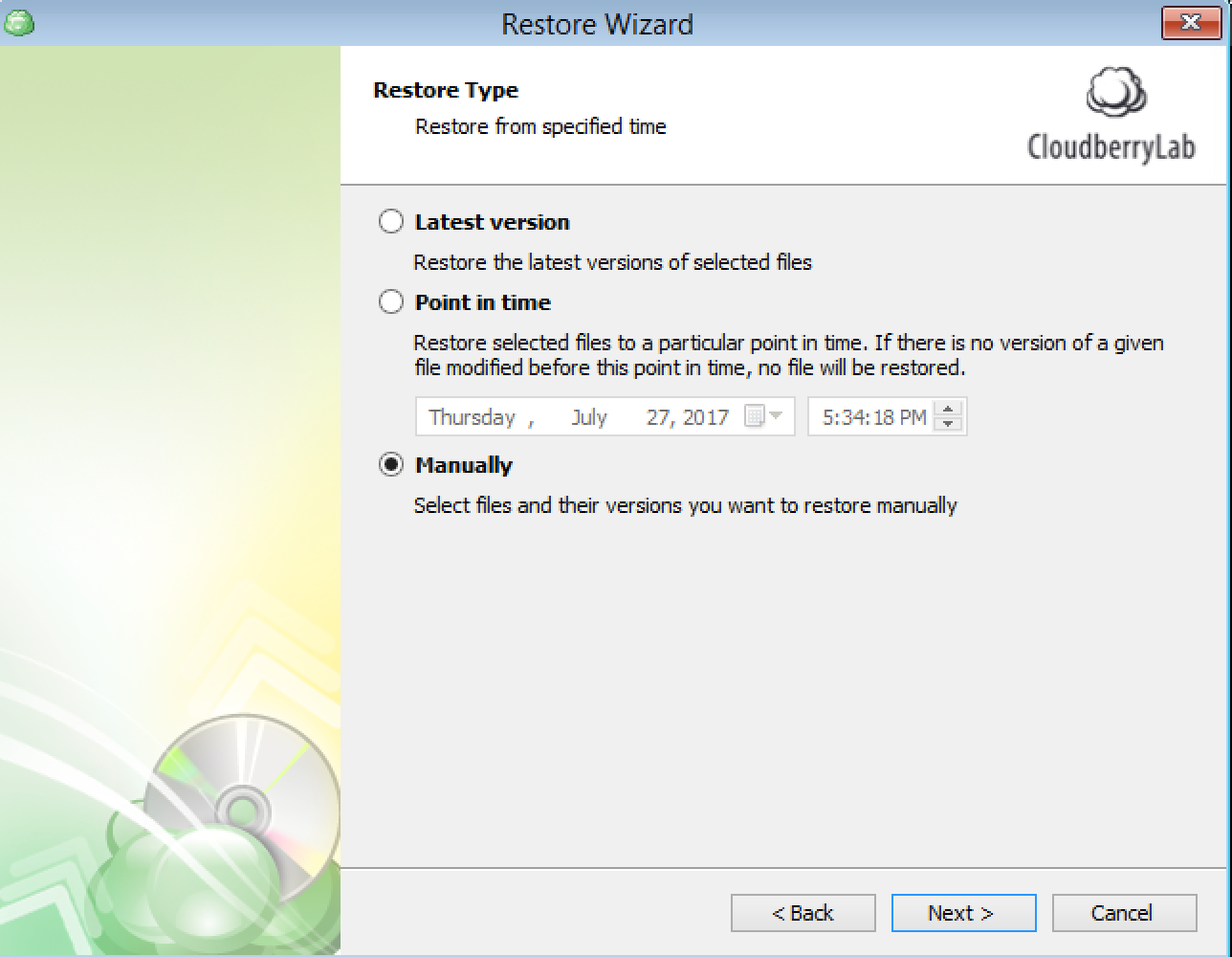

    7 Choose the option Manually:

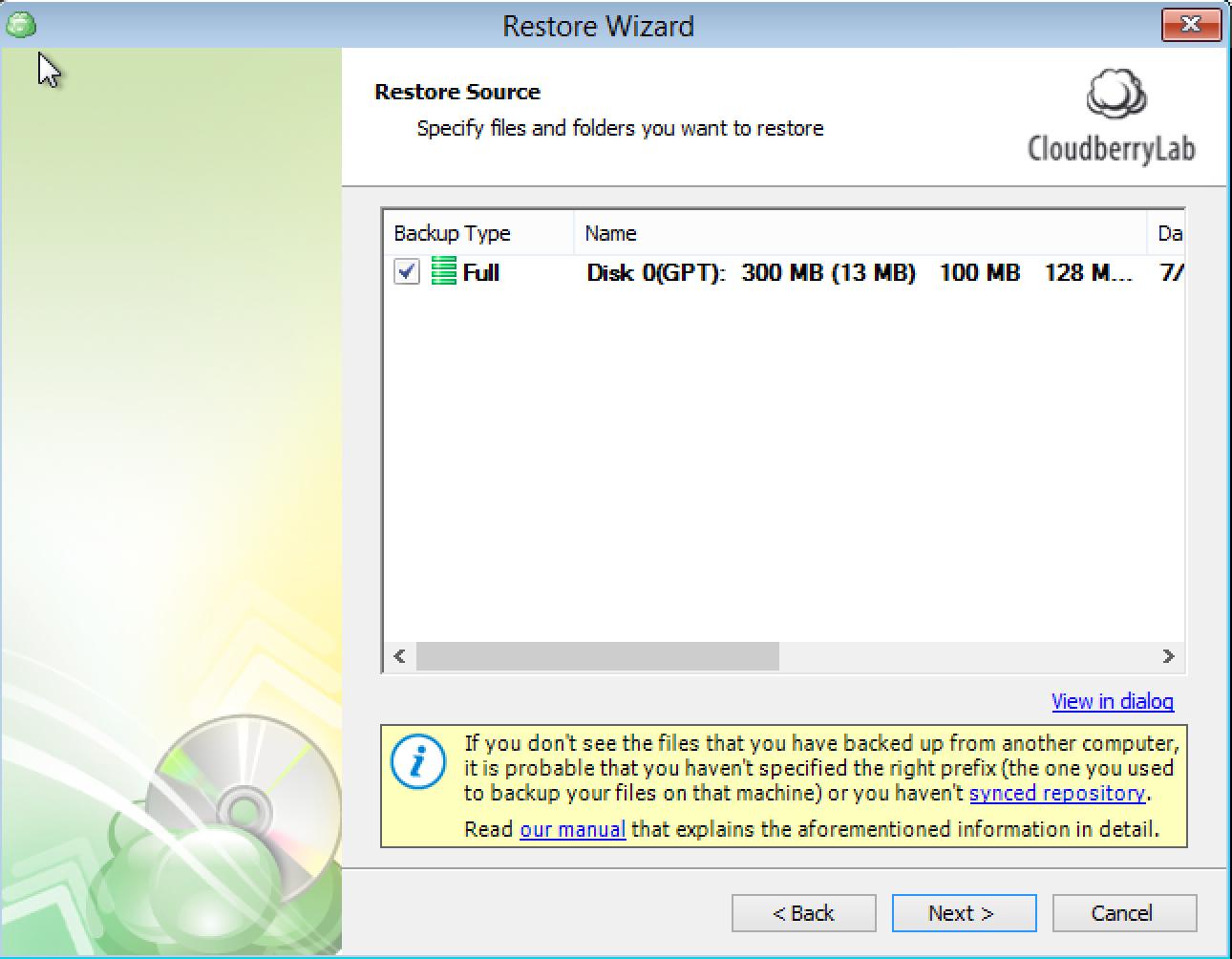

    Manual Restore for Windows Server recovery It enables you to select which versions of each image to restore: Selecting disk image

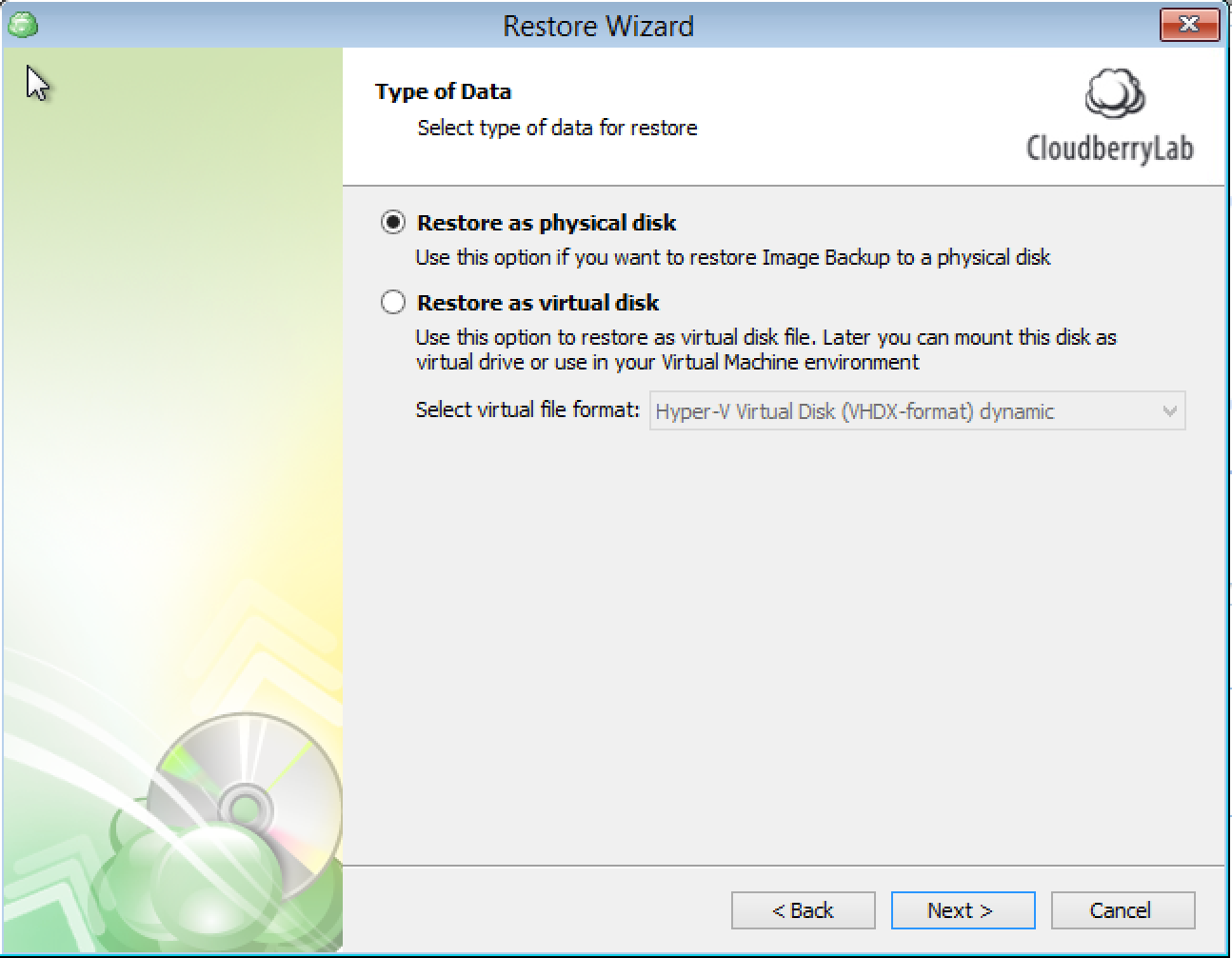

    8 Select Restore as physical disk:
    Selecting type of restore

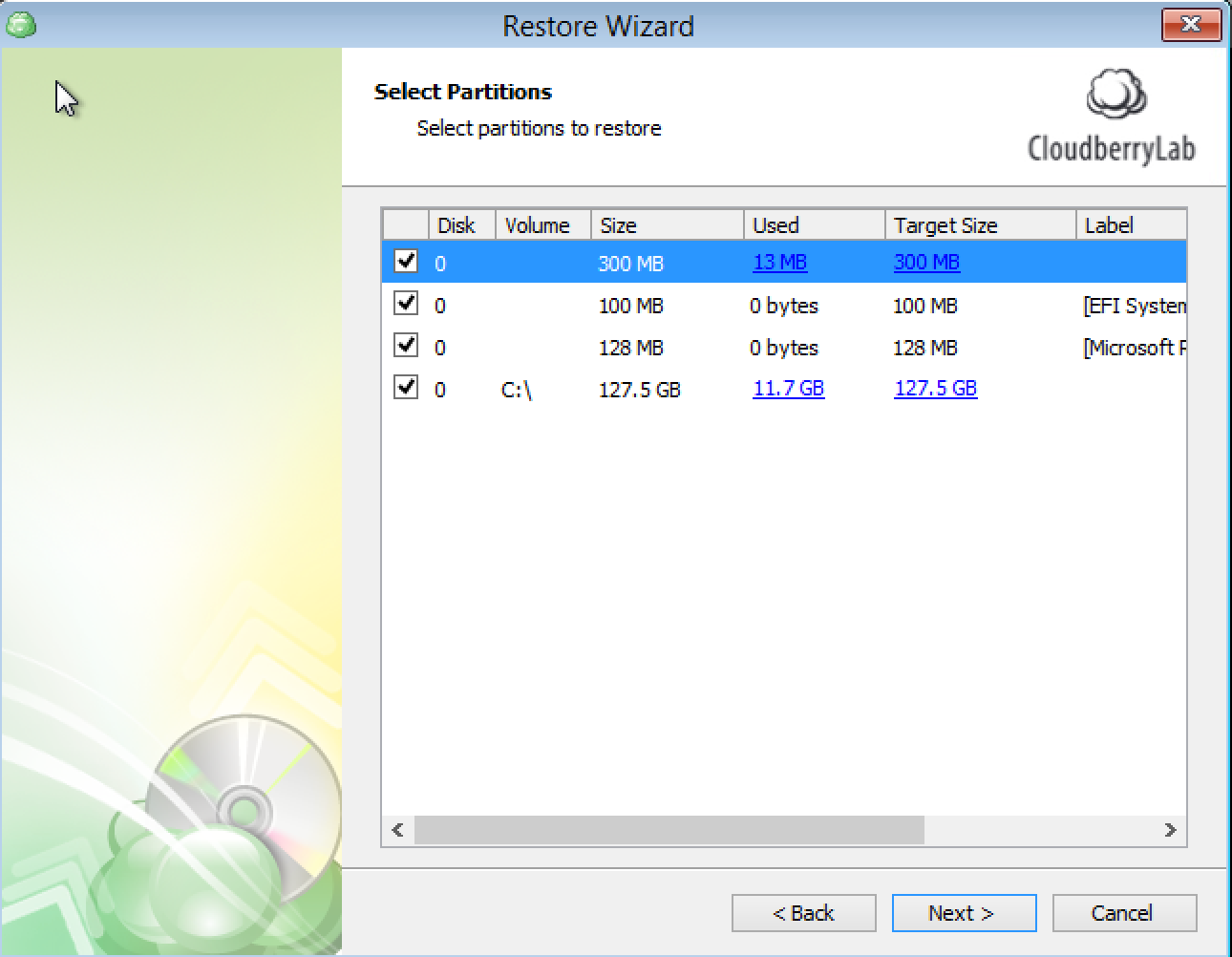

    9Select partitions to restore:Selecting which partions from iamge to restore

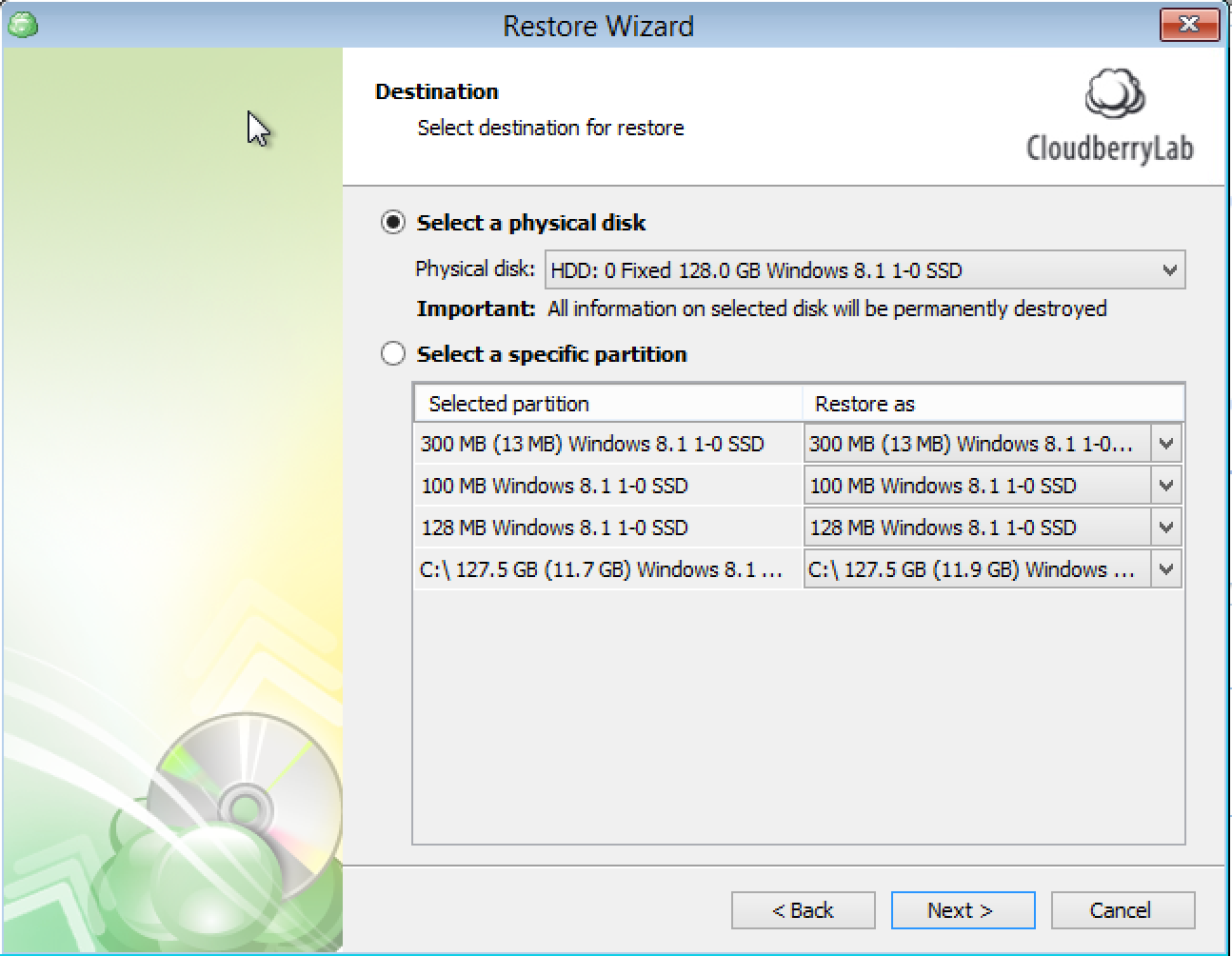

    10 Select the destination for restore:
    Select to which physical disk server image will be restored to

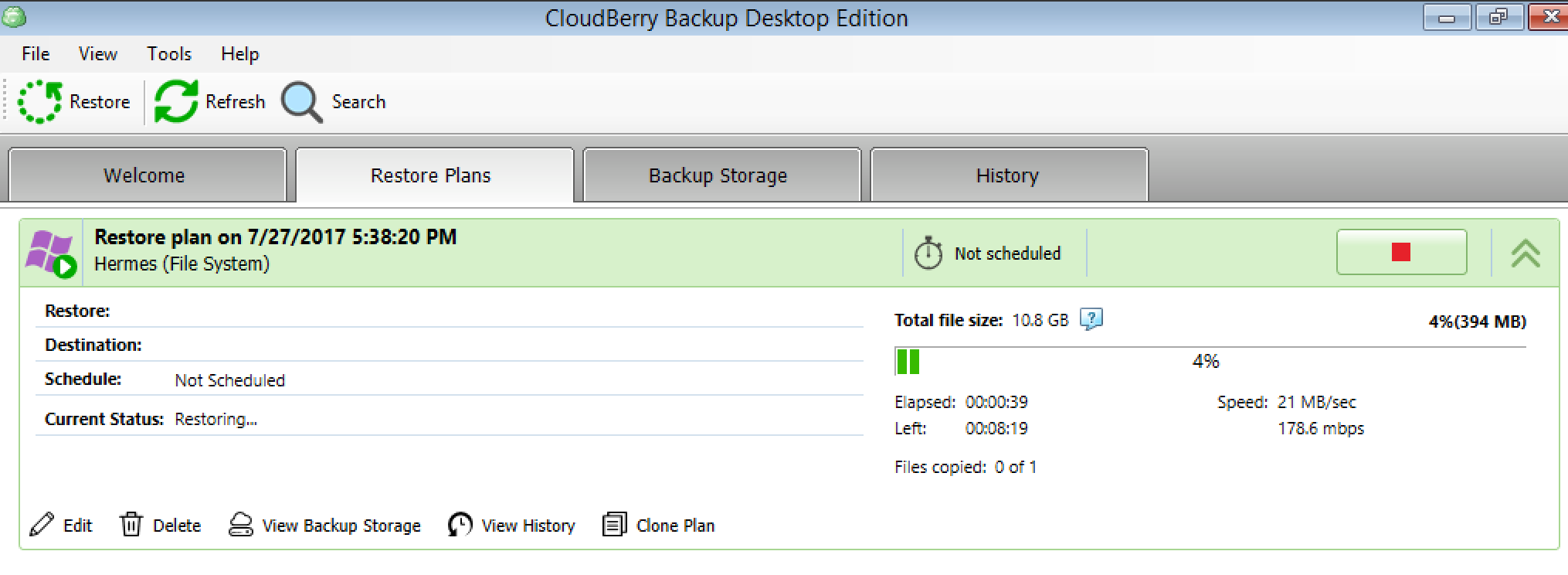

    11 Complete configuring the image restore plan and execute it. When the restore process completes, the OS will be fully restored.
    windows server restoration process

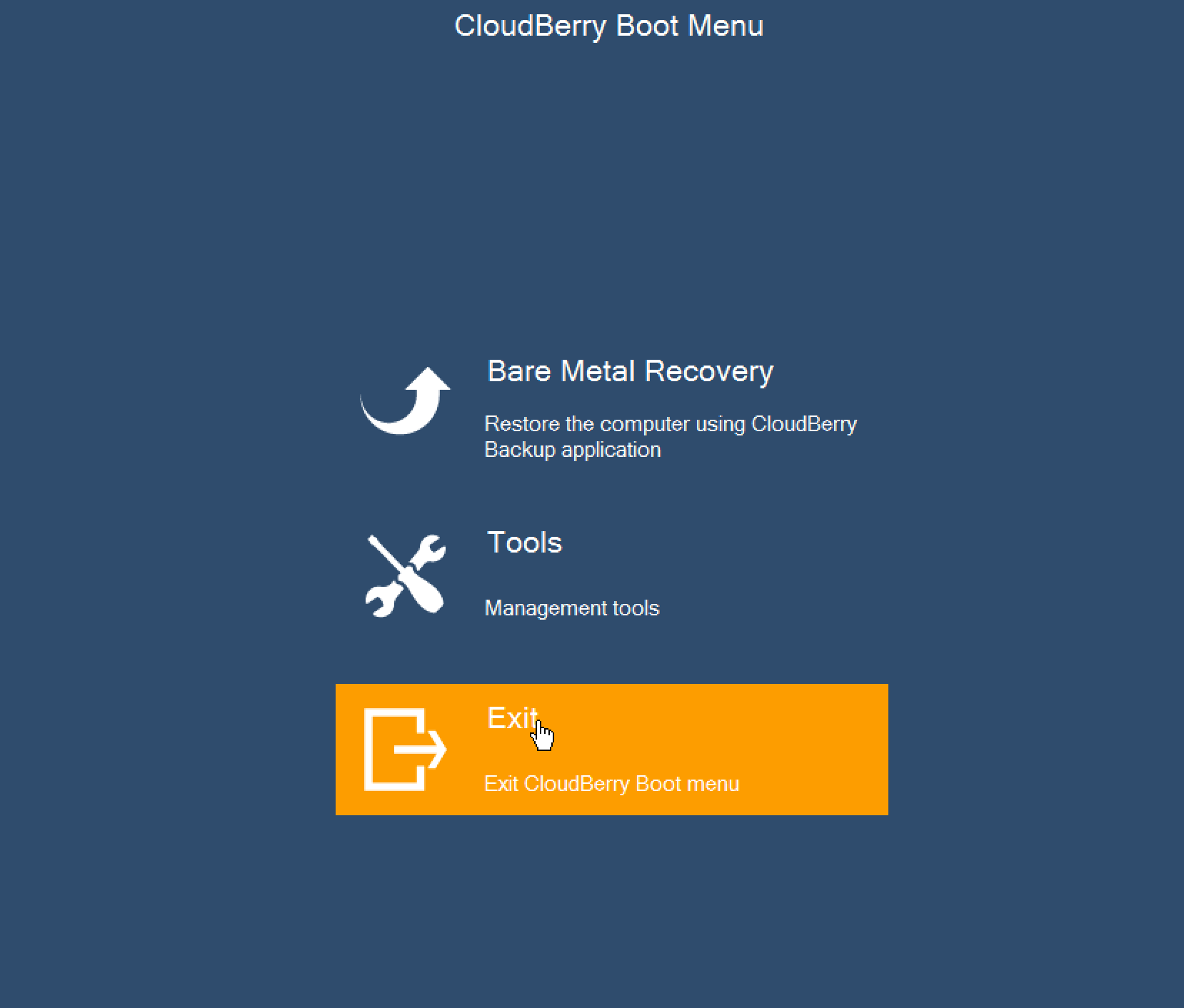

    12 Once completed, exit MSP360 Backup and then exit the MSP360 Boot Menu.
    windows server recovery is complete

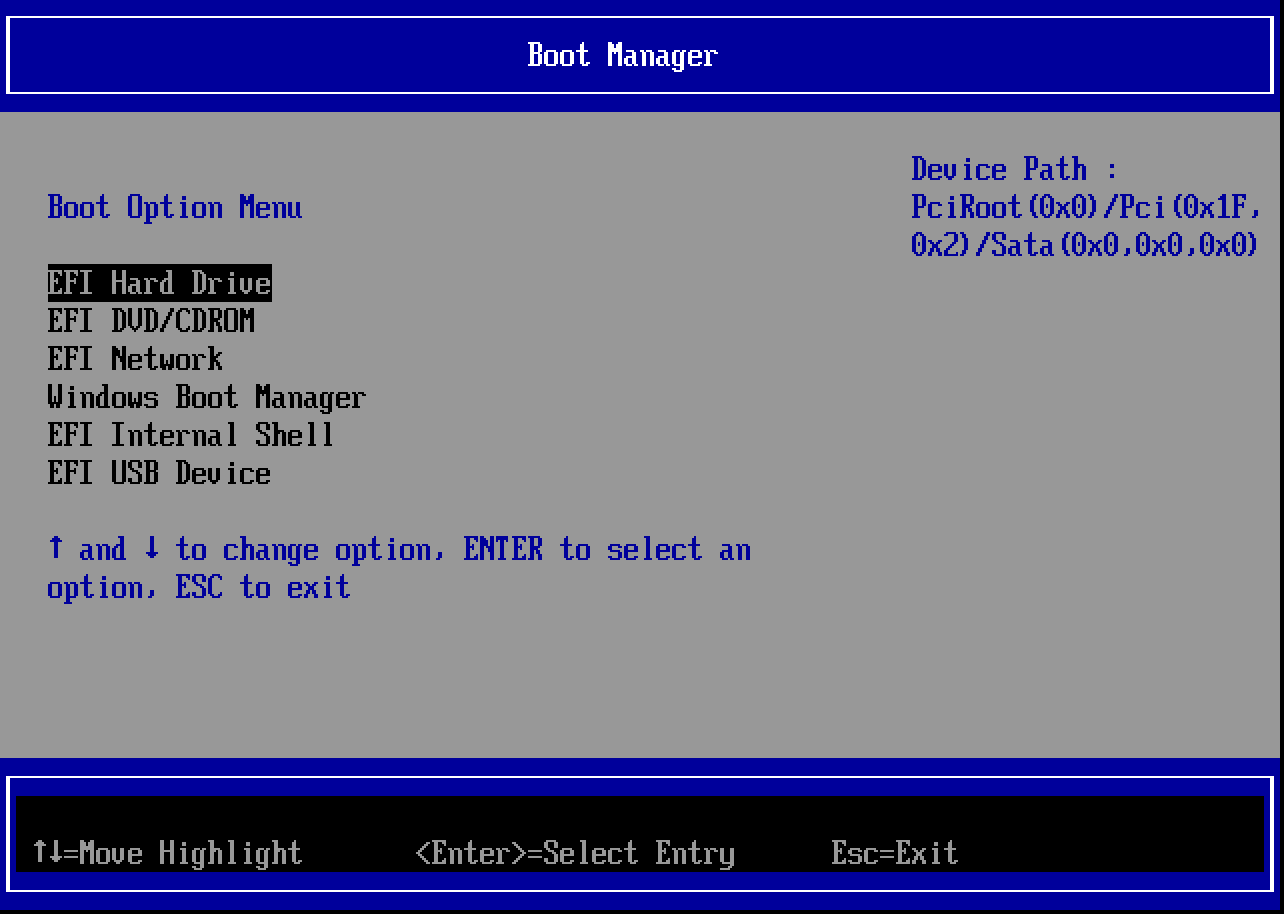

    13 You return to the Boot Manager where you need to select your main hard drive which contains the freshly restored OS.
    restored windows server is now ready to boot

    14 Reboot the server and your Windows Server should boot up in the same state from the earlier backup.
    restored windows server

    Check out our help article for more details on how to use a recovery disk and troubleshooting.

    Conclusion

    This is how you create a bootable USB drive and perform recovery of Windows Server 2008 -2019 from the bootable USB. If you have any questions, feel free to let us know in the comments section below.
