What Is Bare-Metal Recovery?

Bare-Metal Recovery (or Bare-Metal Restore, or BMR) is a backup recovery technique that allows you to recover data on a computer with no installed operating system - also called a bare-metal machine. To achieve this, you will need a system image of the computer that you would like to recover. This saves time while installing and configuring a new machine.

Use Cases

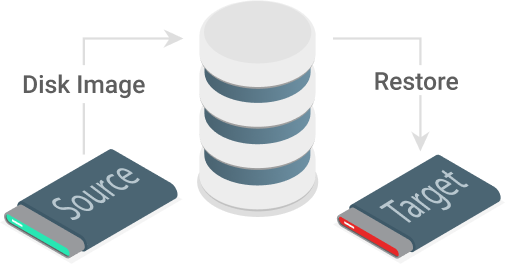

Diagram showing how bare-metal recovery works

Bare-metal restore is helpful when you need to rebuild your computer infrastructure quickly:

    • After ransomware attacks
    • When hardware fails unexpectedly
    • When disaster recovery is needed

You can also use the bare-metal restore technique to configure a number of machines in the same way using a so-called ‘master image’ to restore on all those machines.

All cases require a completely free storage media: without any data, software and operating system.

FREE WHITEPAPER
Full System Backup and Recovery
Check out our comprehensive guide covering system image, system state and application-aware backup and recovery, as well as bare-metal recovery:
New call-to-action
WP icon

Advantages

Bare-metal recovery advantage: faster than manual recovery No need to install software or operating system, thus faster than manual recovery

Bare-metal recovery advantage: less human interaction Less human interaction, thus less room for failure

Bare-metal recovery advantage: ability to automate server migration Ability to automate server migration to physical, virtual or cloud environments

The simplicity of bare-metal restore is unmatched, enabling you to restore the entire hardware infrastructure swiftly and conveniently.

  New call-to-action

How to Perform Bare-Metal Recovery

Typically the process of bare-metal restore includes recovery of a system image backup from an ISO image file or a USB flash drive that you boot on your machine to perform a restore.

Further reading Learn how to create a bootable USB for bare-metal restore using MSP360 Backup

6 Steps to Windows Bare-Metal Restore

Please note that MSP360 Backup doesn't support native Windows bare-metal restore, instead, you can restore the image you have created with MSP360 image-based backup.

1 Plug the drive with your system image (prepared for bare-metal recovery) into the needed computer.

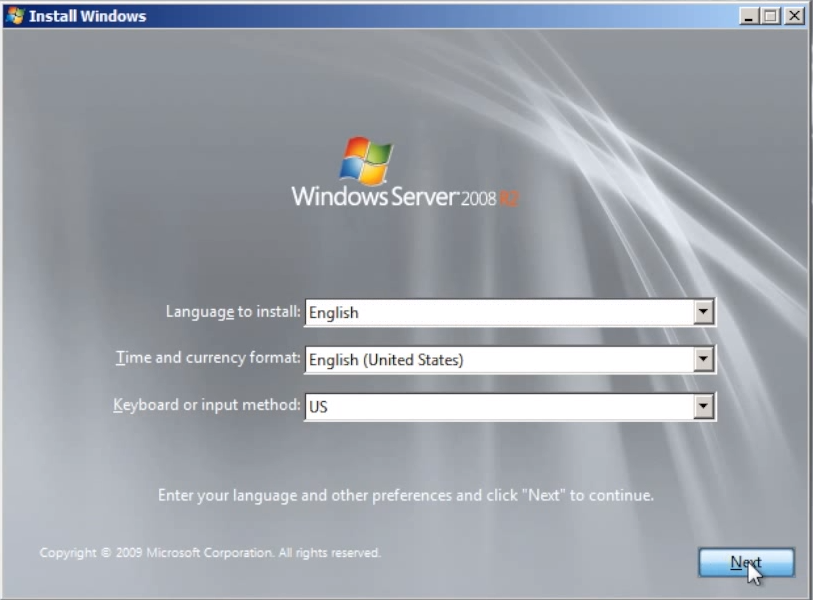

2 Select language, time and currency preferences:
Bare-metal recovery step 2: selecting language, time and currency preferences

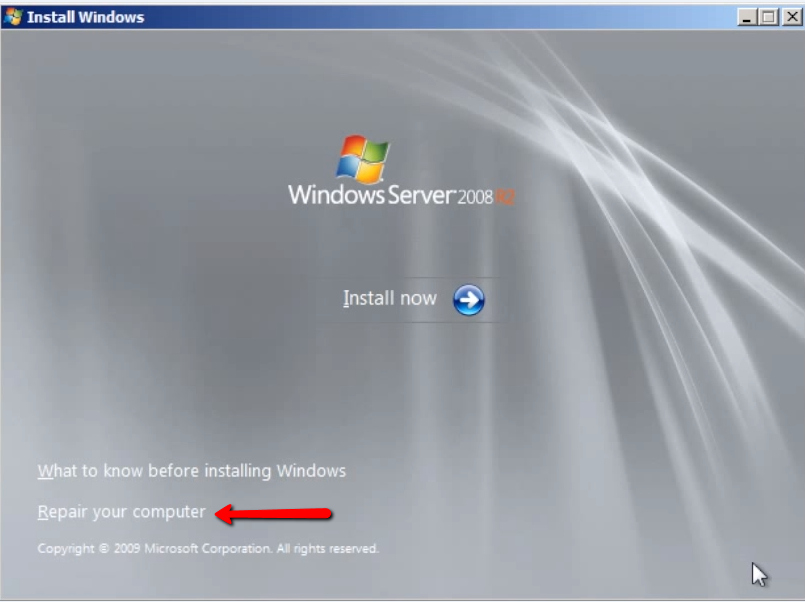

3 Click Repair your computer:
Bare-metal recovery step 3: click 'Repair your computer'

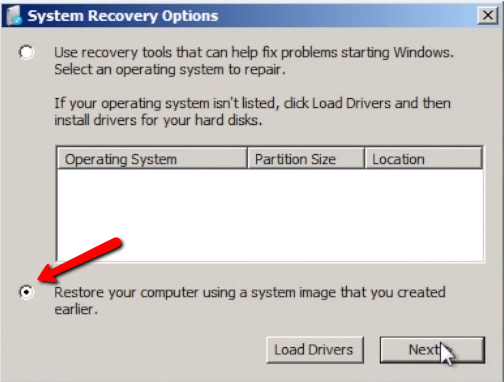

4 Check Restore your computer using a system image that you created earlier:
Bare-metal recovery step 4: check 'Restore your computer using a system image that you created earlier.'

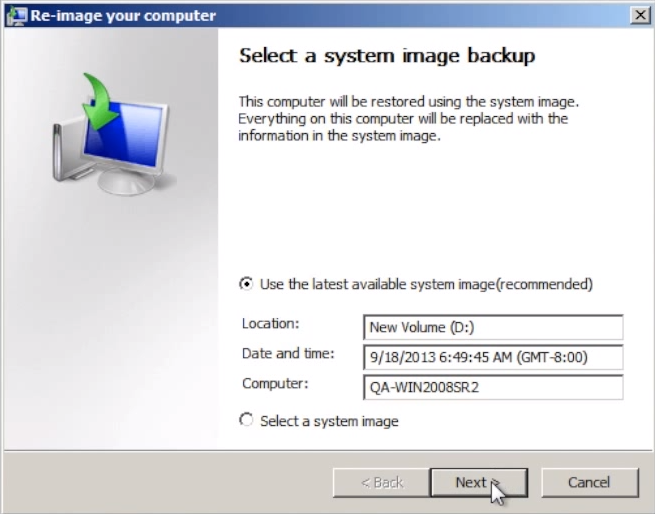

5 Check Use the latest available system image:
Bare-metal recovery step 5: check 'Use the latest available system image.'

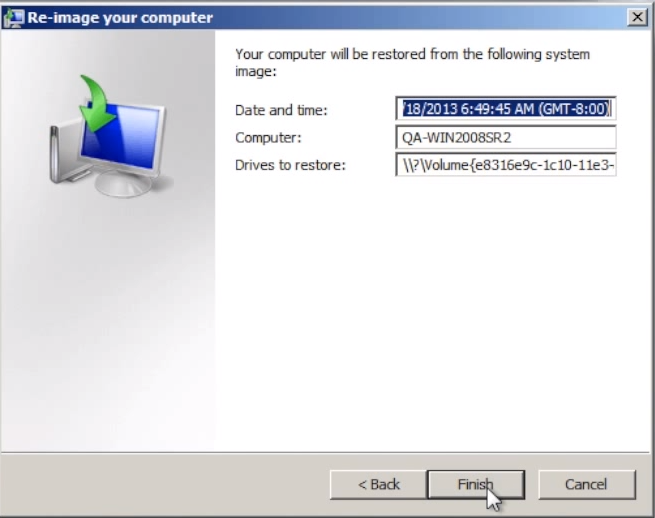

6 Click Finish:
Bare-metal recovery step 6: click 'Finish'.

After reboot, you’ll be ready to go.

Bare-Metal Restore to Dissimilar Hardware

Bare-metal restore can be an issue if you try to recover to dissimilar hardware. Your operating system may fail to boot in case your hardware, where you’re trying to perform a restore, has different boot-critical devices - as compared to the machine where you created a system image.

In order to boot, the operating system needs drivers of the following devices:

  • CPU
  • Motherboard
  • HDD controller

So if your system image has drivers that do not match these boot-critical devices of another machine, an operating system on that machine will not be able to boot.

To prevent it, you can install additional drivers required for the hardware configuration where you will be performing bare-metal restore from your recovery disk.

Bare-Metal Recovery with MSP360

MSP360 Backup offers you a fast and simple bare-metal restore process. It allows you to perform image-based backups to any cloud or local backup destination, restoring image-based backups as VMware virtual machines or Azure virtual machines.



Bare-metal recovery from USB or ISO fileBootable USB for Bare-Metal Restore

Easily create a recovery USB drive or bootable ISO file for emergency recovery in case of a system or hardware crash. Install additional drivers for a hardware configuration that is different from the current machine.



Flexible retention and recoveryFlexible Retention and Recovery

Why recover only the latest version? MSP360 Backup allows bare-metal restore to the point in time that you choose. Store as many versions as you need for as long as you need with flexible retention settings.



Compression and encryption

Compression and Encryption

Compression allows you to reduce storage (and thus save money) while improving backup time. With AES-256 encryption, you can be sure that all your files are protected.



System state and system imageSystem State and System Image

MSP360 Backup provides:



Cloud and localCloud and Local

MSP360 Backup allows you to store your backups on local storage and any of more than 20 cloud storage providers, including Amazon S3 and Amazon Glacier, BackBlaze B2, Wasabi Hot Storage, and Microsoft Azure.
